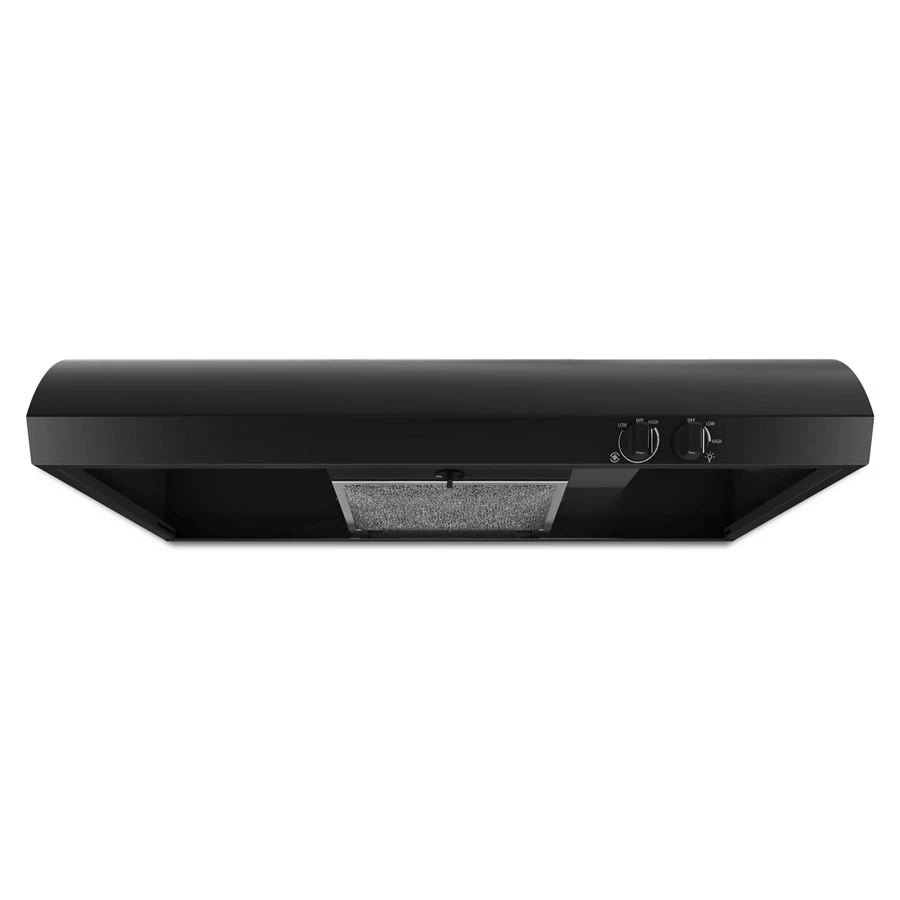

30" Range Hood with the FIT System - UXT4230ADB

WhirlpoolWhirlpool brand logo

30" Range Hood with the FIT System

Model: UXT4230ADB

30" Range Hood with the FIT System UXT4230ADB30" Range Hood with the FIT System UXT4230ADB30" Range Hood with the FIT System UXT4230ADB30" Range Hood with the FIT System UXT4230ADB
30" Range Hood with the FIT System UXT4230ADB
30" Range Hood with the FIT System UXT4230ADB
30" Range Hood with the FIT System UXT4230ADB
30" Range Hood with the FIT System UXT4230ADB

Color : Black

30" Range Hood with the FIT System UXT4230ADB
Black

Key Features

  • FIT System

  • 58 dBA (3.0 sones) at Low Speed

  • Hidden Vent

  • Powerful Variable-Speed, 225 CFM Motor Class

Description

Installing this stove hood is quick and easy. The FIT system eliminates measuring, cutting and filler strips for a smooth fit every time. Once installed, the hood vent kitchen fan operates at a quiet 58 dBA (3.0 sones) at working speed so it won't disturb family time in the kitchen. Plus, incandescent lighting helps you keep a close eye on food so each dish turns out the way you want it to. And when cooking introduces steam, grease, smoke or odors into the surrounding air, a 225 CFM motor class takes care of it.
Read More

Available from MASH II, Inc, serving customers throughout Bowling Green.

Features
Specifications

Features

FIT System

The FIT system eliminates measuring, cutting and trim for a perfect fit every time.

58 dBA (3.0 sones) at Low Speed

Keep noise down in the kitchen with the quiet operation of 68 dBA (6.4 sones) at the hood's highest speed with a recirculation option.

Hidden Vent

Powerful Variable-Speed, 225 CFM Motor Class

Variable speeds provide the right amount of ventilation for every meal you prepare.

Specifications

Refinements

FeaturesFIT System, Grease Filter

Dimensions

Common Size30 in
Depth18.625 in
Gross Weight17 lbs
Height4.9375 in
Net Weight14 lbs
Width29.9375 in

Ventilation Details

CFM Motor Class225
Duct DirectionVertical or Horizontal
Duct Outlet Size3.25 W x 10 H in
Duct TypeRectangular
FiltersCharcoal Odor Removing Filter, Grease Filters
Number of Task Light Settings2
Task Light TypeIncandescent
Task LightingYes
VentingExterior or Recirculating

Controls

Control TypeKnobs
Number of Vent Speeds2

Details

Blower TypeAxial
MaterialPainted Steel

Electrical

Amps15
Hz60
Volts120
